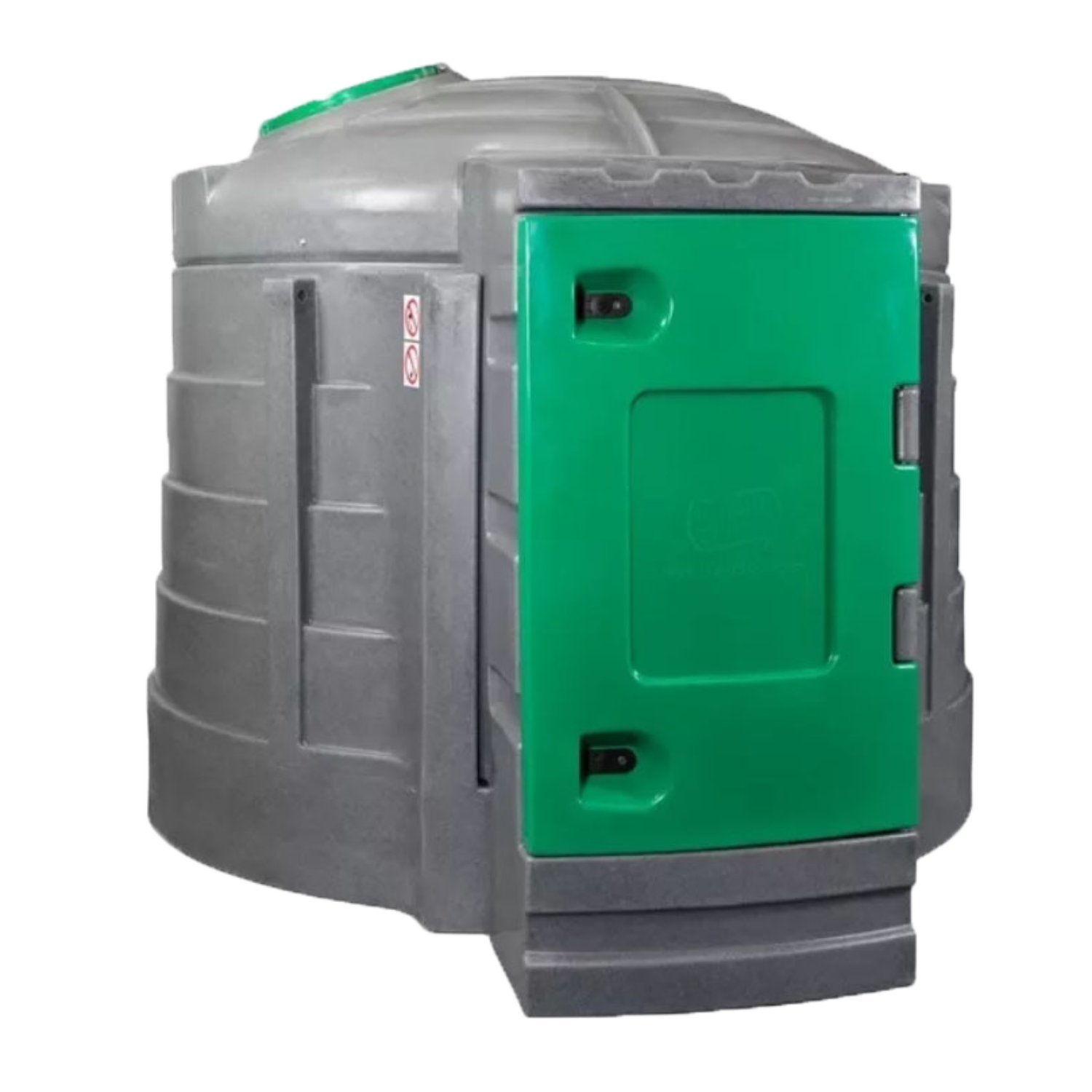

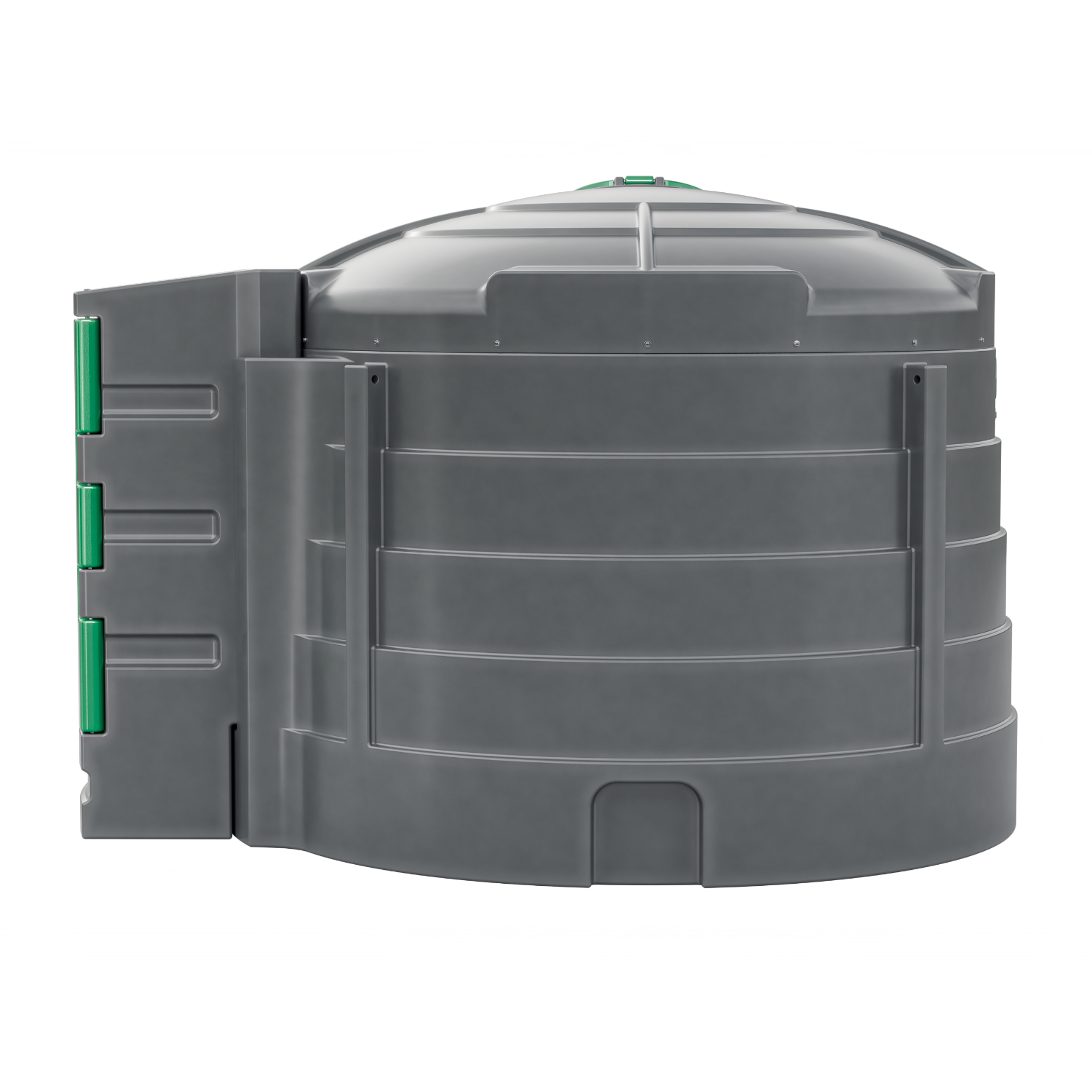

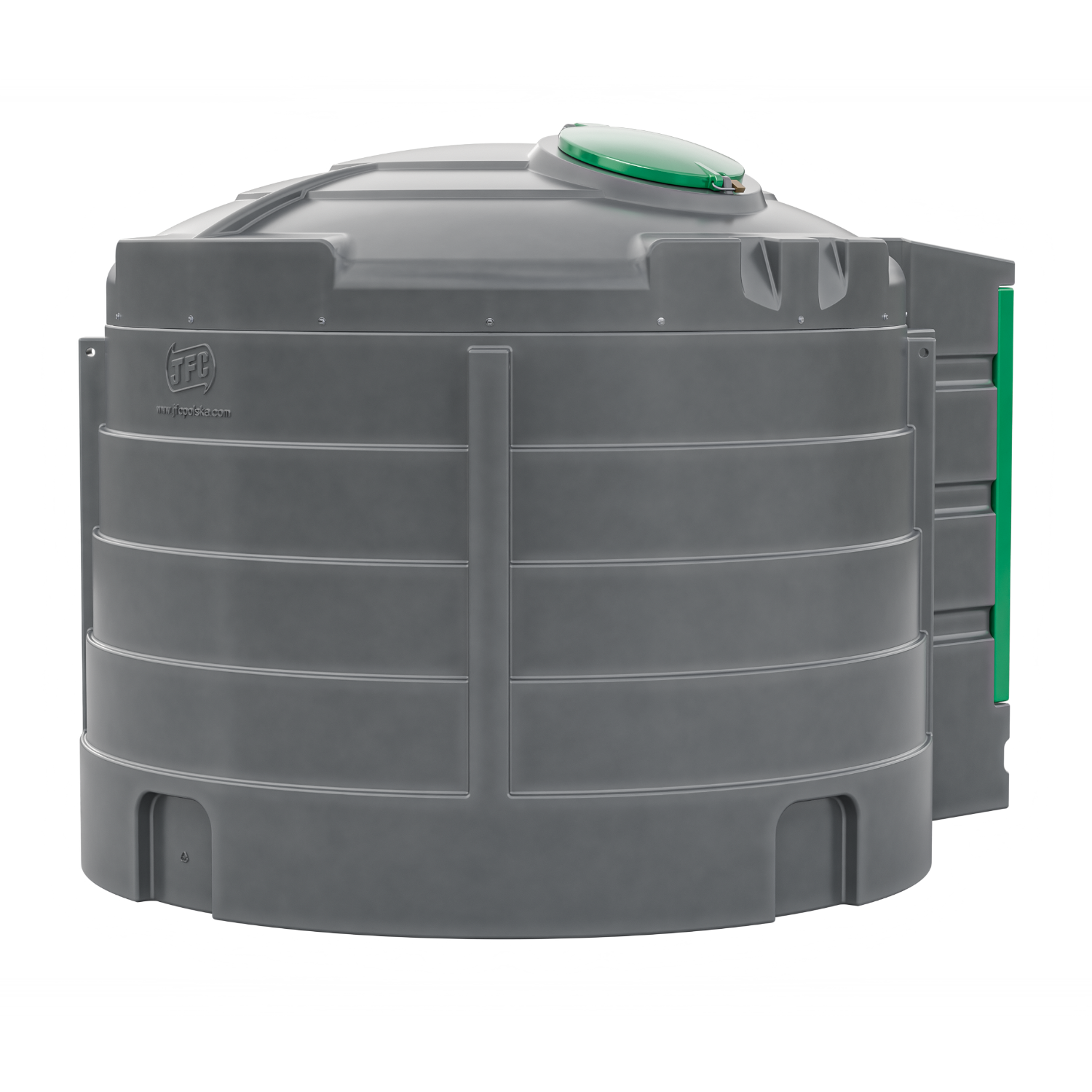

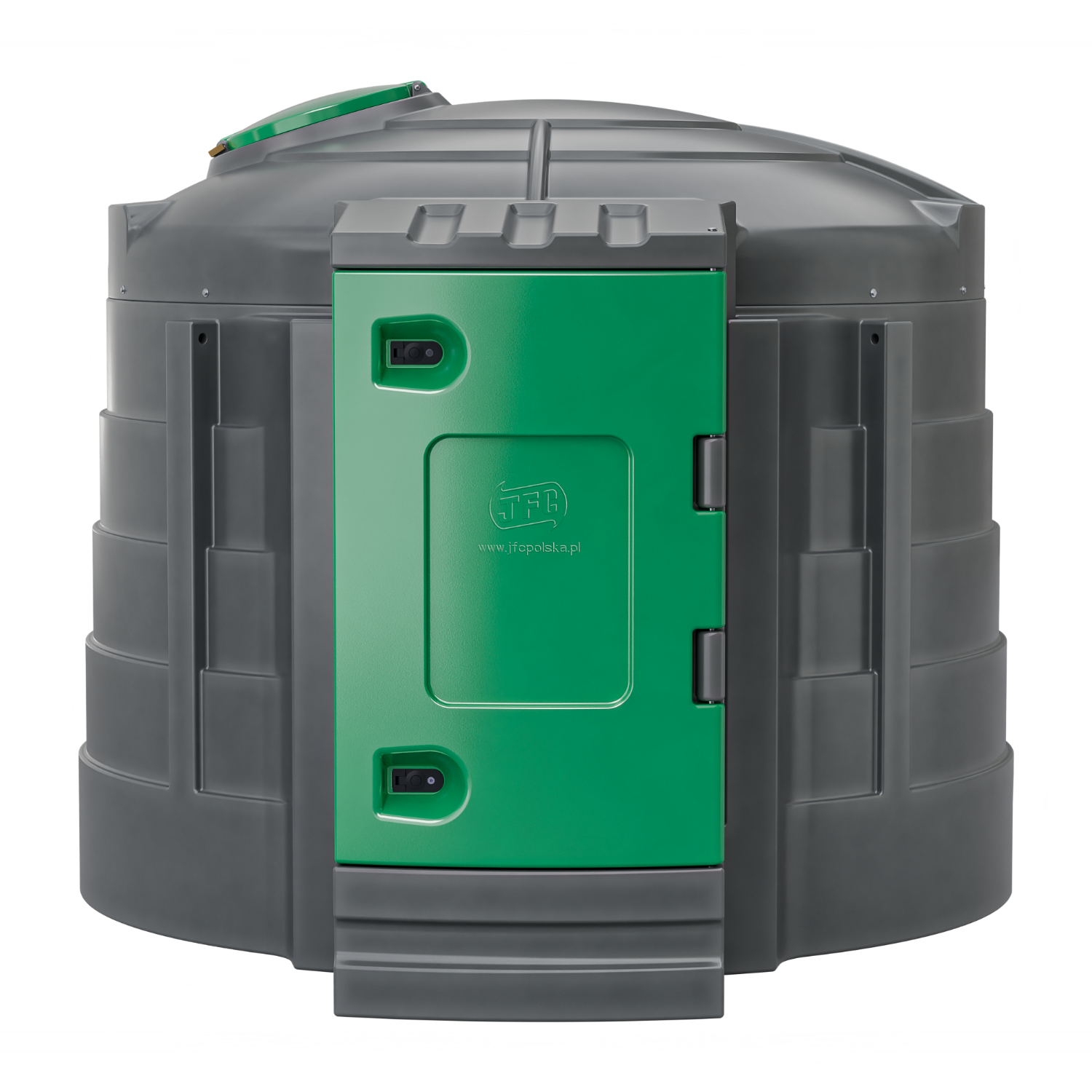

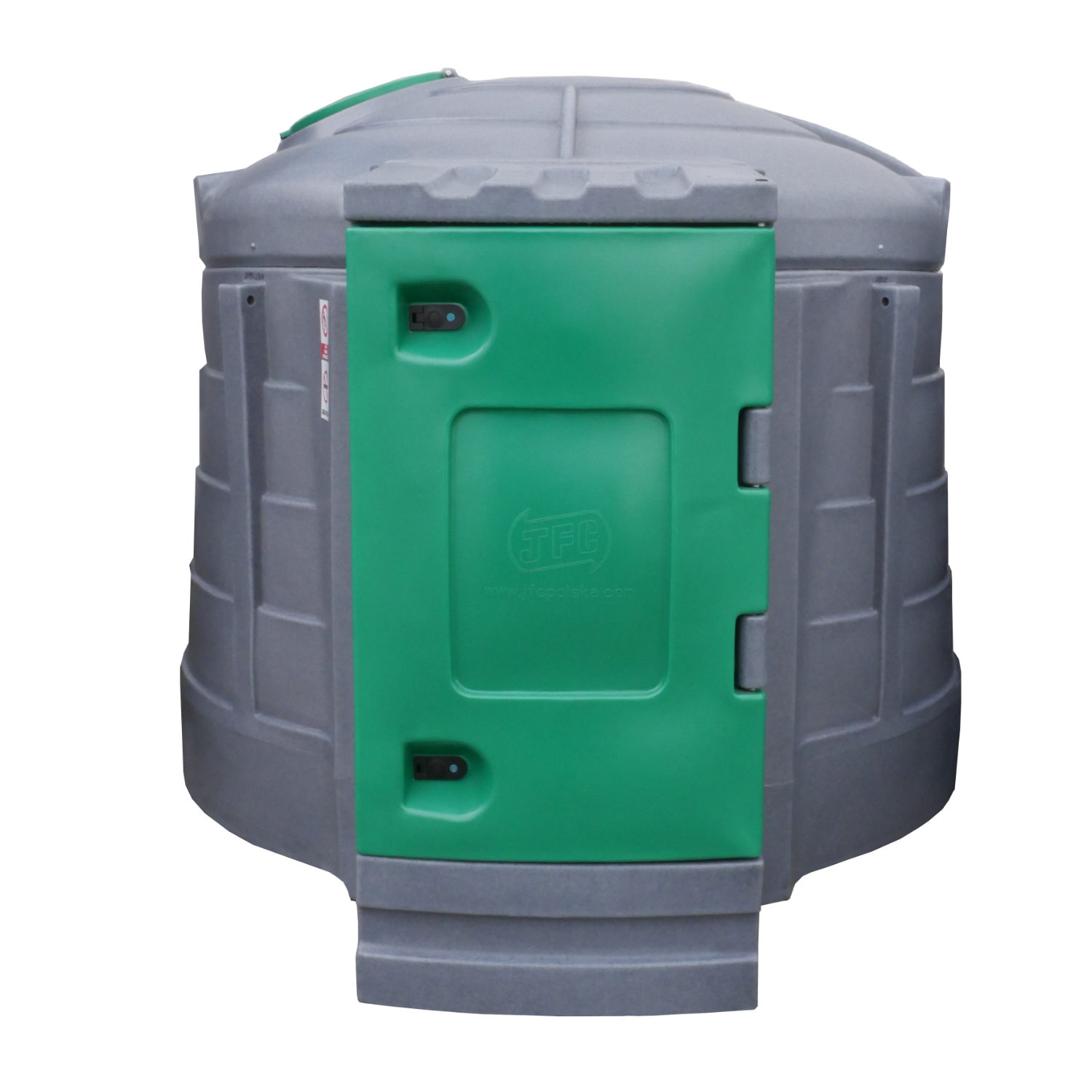

JFC 5000L diesel fuel tank

Double-walled tank for diesel fuel for storage and internal distribution of oil, intended a7> internal distribution of oil, intended for companies that a14> have equipment and vehicles powered by diesel fuel e.g.. transport companies, construction companies, farms agricultural or even private individuals. The tanks are made of high-quality polyethylene, a material resistant to weather conditions and UV radiation.

The ergonomic design of the tank ensures comfort and convenience of use.

Owning your own fuel dispenser ensures independence from fluctuating fuel prices, and bulk fuel purchases can result in significant cost savings.

Standard equipment:

Panther diesel fuel pump

• Capacity up to 72 l/m
• Power supply 230V / 50Hz
• Power 500W
• Maximum current intensity 4.2A
• Connections 2x F1″
• Built-in filter 100 µm

ModiFlow digital counter

• Inlet and inlet 1″
• Minimum flow rate 10 l/min
• Max. flow rate 120 l/min
• Accuracy +/- 0.5%
• Repeatability < 0.03%
• Maximum. Viscosity 1000 cP
• Operating pressure 0.3MPa
• Power supply: 2 x AAA

A60 automatic nozzle

• Flow rate up to 70 L/min
• F1″ connection on swivel joint 3/4″–1″
• Outer diameter of the spout: 25mm

8 m distribution hose

• Inner diameter 19mm
• Outer diameter 27mm

Filter metal with separator water CFD 70-30

• Flow rate up to 70 L/min
• 2 x F1″ connection
• Filtration degree 30µm

GOK maximum overfill sensor

APOLLO STANDARD ultrasonic liquid level indicator

• Mierzy poziom paliwa w zbiorniku w 10-cio stopniowej skali wysokości zbiornika
• Tank depth measurement range from 0.1 to 3 m
• Maximum communication distance: max. 200 m in a straight line
• Receiver power supply 230V / 50Hz
• Radio frequency 433MHz

Tank dimensions:

A : 2,04m

B : 2,38m

C : 2,95m

The manufacturer provides a 10-year warranty on the tank and 2 years on equipment.
